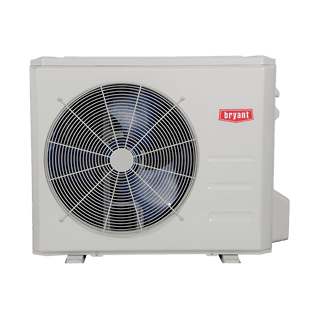

Preferred Heat Pump with Basepan Heater 38MAR

• Product Line: Ductless systems – Preferred Series
• Energy Star® Qualified: Some sizes qualified
• SEER Range: 23+ SEER
• SEER Efficiency: Up to 25.0
• HSPF Efficiency Range: 12+ HSPF
• HSPF Efficiency: Up to 12.0
• Sound Level Range: 50 to 59 Decibels
• Sound Level: As low as 52.5 decibels
• Purpose: Heating and cooling
• System Type: Single Zone
• Proposition 65 Product Warnings: 343824-2 Lead and Lead Compounds

• 100% Heating Capacity at 5° F (-15° C)*
• Inverter Compressor
• Up to 25.0 SEER cooling efficiency
• Up to 12.0 HSPF heating efficiency
• Select sizes are ENERGY STAR® certified based on indoor unit pairing
• Available in 115V and 208/230V
• Sizes ranging from 09 to 36
• Built-in basepan heater
• Piping length 82-164 ft. depending on unit capacity and system configuration
• Refrigerant leakage detection
• Condenser high-temperature protection
• Quiet outdoor sound operation, as low as 52.5 decibels1
• Line lengths 82-164 ft. depending on unit capacity and system configuration
• 46° F heating mode (heating setback)
• 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
• Compatible units: 619PB High Wall, 40MBCQ Cassette, 40MBDQ Ducted, 40MBFQ Floor Console

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 25.0 SEER/up to 15.0 EER/up to 12.0 HSPF
ENERGY STAR^® Select sizes are ENERGY STAR^® certified based on indoor unit pairing

COMFORT MANAGEMENT

Cooling Operating Range -13° F up to 122° F (-25° C up to 50° C)
Heating Operating Range -22° F up to 86° F (-30° C up to 30° C) – Sizes 09-24 (208/230V) -13° ~ 86° F (-25° C up to 30° C) – Sizes 9, 12 (115V) & 30, 36 (208/230V)
Quiet Levels as low as 52.5 dB(A)¹

TECHNOLOGY

Compressor Inverter
System Capacity 0.75 – 3 tons
Voltage 115V (Sizes 9, 12), 208/230V (Sizes 9-36)

AESTHETICS

Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 164 ft.

MODELS

Full Model Numbers 38MAQB**R–1, 38MAQB**R–3

COMPATIBLE UNITS

Full Model Numbers (Single Zone System) 619PAQ***BBMA High Wall, 619PEQ***BBMA High Wall, 40MBCQ**—3 Cassette, 40MBDQ**—3 Ducted, 40MBFQ**—3 Floor Console

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.



¹ Quietest size within each model group during most common cooling operating condition.
